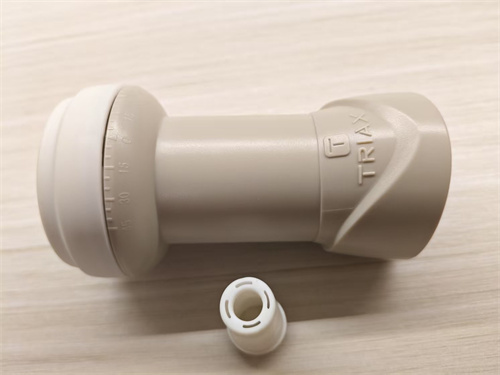

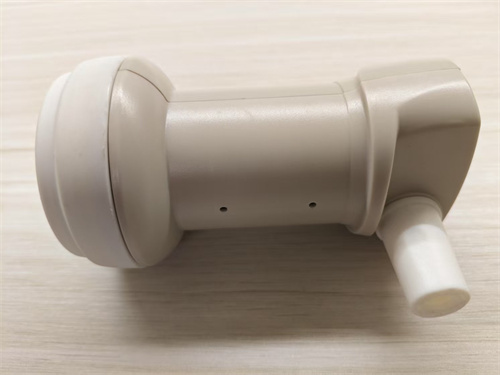

Single LO KU-Band LNB

Single LO KU-Band LNB
Key Specifications
Frequency Range : 10.7–12.75 GHz
LO Frequency : 10.750 GHz (or 11.3 GHz, depending on model)
Gain : ≥65 dB (typical)
Noise Figure : ≤0.1 dB
Polarization Control : 13V (Vertical) / 18V (Horizontal)
Output Connector : F-type female (compatible with coaxial cable)
Operating Voltage : DC 10–24V (compatible with standard satellite receiver power supply)
Features
Low-noise amplifier (LNA) design for improved signal sensitivity
Compatible with DVB-S/S2, ABS-S, and other satellite TV signal standards
High gain for long-distance cable transmission
Wide input voltage range, supporting most satellite receivers
Applications
Home satellite TV reception (e.g., ChinaSat 9, AsiaSat 6, etc.)
Small satellite ground stations
Satellite monitoring and data transmission systems
Notes
Select the appropriate LO frequency (10.750 GHz or 11.3 GHz) based on the satellite's downlink frequency.
Adjust polarization angle during installation for optimal signal quality.

 For detailed technical specifications, refer to the official datasheet of the specific model.

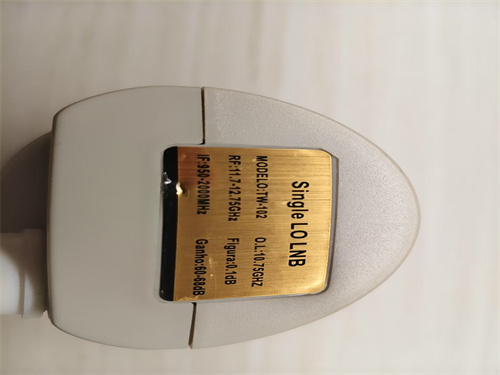

RF：11.7-12.75GHz

IF：950-2000MHz,
