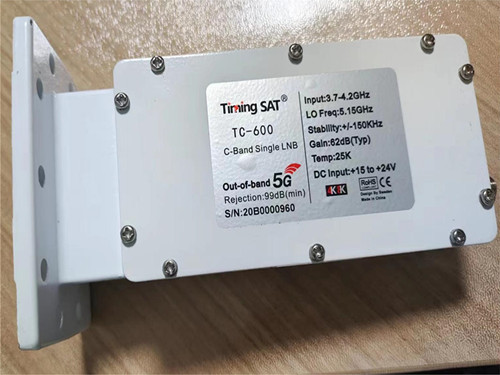

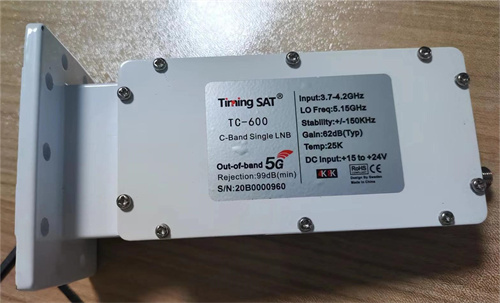

TC600嵌入抑制 5G 降频器

Output Frequency
L.O. Frequency
Noise Figure
Conversion Gain (Room Temp.)
Gain Flatness
Gain Variation
L.O. Frequency Stability
L.O. Phase Noise
Image Rejection
P1 dB Compression Point
Ipput VSWR
Output VSWR
Rejection 5G
5G input level
Output Connector
Input Connector
DC Current Consumption
DC Voltage Supply
L.O. Leakage Input Port
Operating Temperature
Storage Temperature
Relative Humidity
Construction

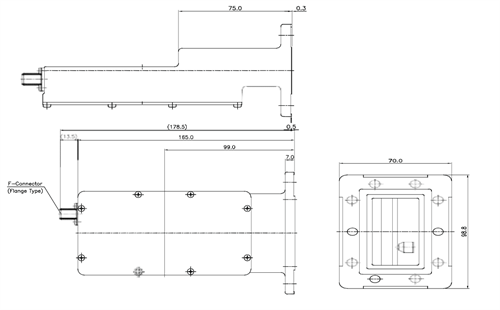

Dimension
950~1450 MHz
5.15GHz
20°K(Min.),35”K (Max),25K(Type)
55 dB (min.) / 65 dB (max,),60(Type)
+0.5 dB / 26 MHz
5dB / Full Band
+150KHz (max.] @+25C+250KHz (max)@-40C~+60“C
-65 dBc/Hz @1KHz-80 dBc/Hz @ 10 KHz
45 dB(min.)
5 dBm (Max.)
2.2 : 1 (max)
2.2 : 1 (max.)
85dB(max.)
-33dBm(max.)
75 Ohm F-Type Female

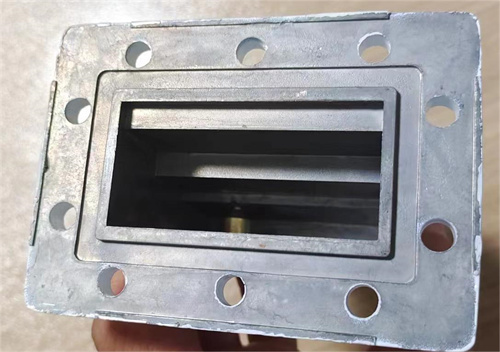

CPR-229G waveguide grooved waterproof
300mA(max.)
11.5 ~ 24.0V
-45dBm(max)
-40~+70C
-40Cto+80C
0%-95%
Aluminum
190(L)X115(W)X78(H)mm
